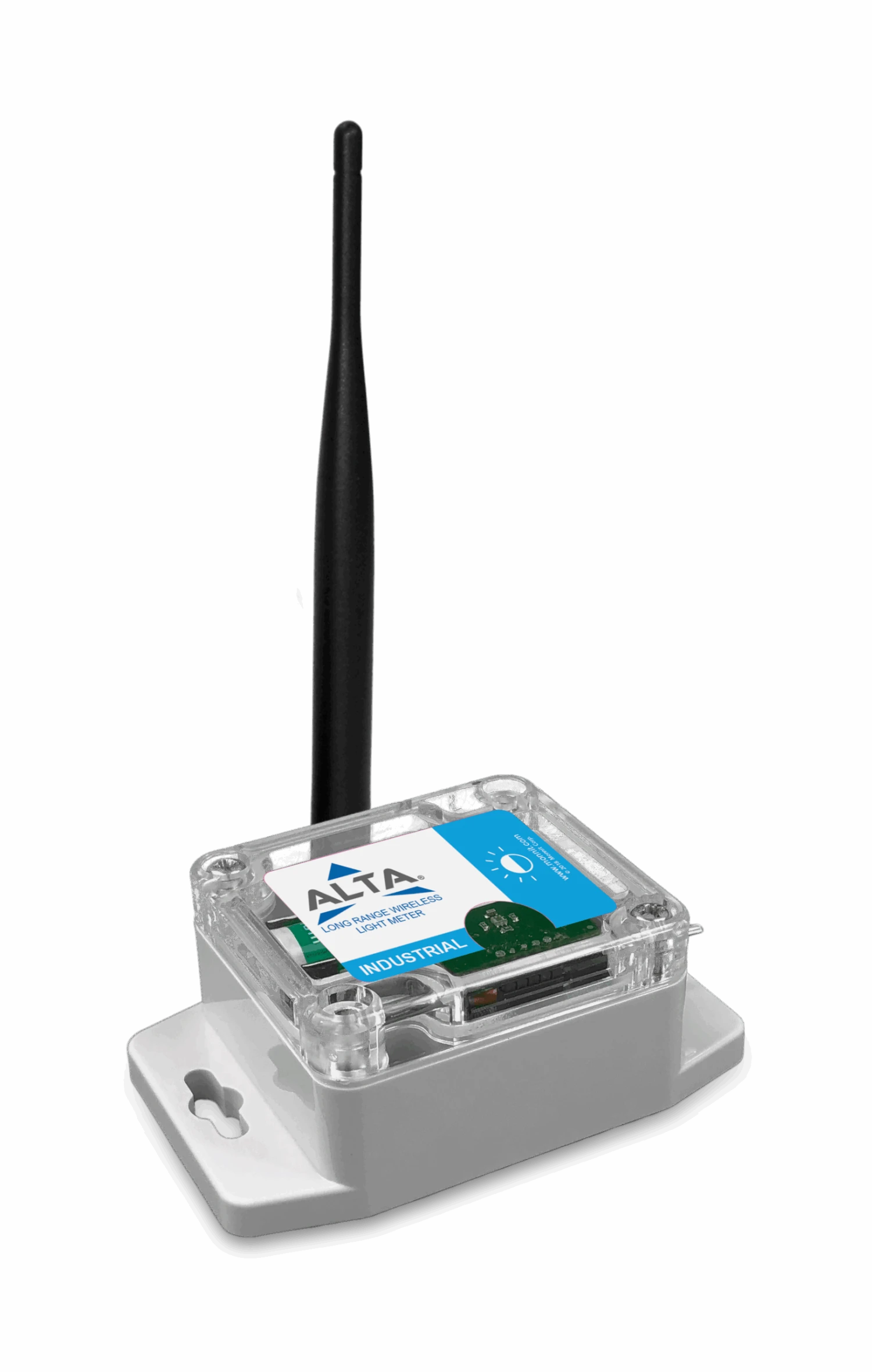

ALTA Industrial Wireless Light Meter, 900MHZ

ALTA industrial wireless light meters measure the intensity of light in lux (luminescence/unit area), from 0 – 1000 lux (indoor range). Perfect for light sensitive applications like museum and art gallery light monitoring. User customization allows you to set the frequency of readings and the ability to set thresholds for notifications and alerts by SMS text, email or voice call from the system.



Monnit MNS2-9-IN-LS-LM Features

1,200+ foot range
12+ year battery life
80+ wireless sensors
Bank-level AES security
Up in 15 easy setup
Global ready (900, 920, 868 & 433 MHz)

LUX Sensor Specifications

Sensing Technology: High Sensitivity Photodiode
Sensor Material: Silicon
Peak Wavelength: 580 nm
Maximum Reverse Voltage: 6 V
Maximum Power Dissipation: 40 mW
Maximum Light Current: 500 uA
Maximum Dark Current: 0.3 uA
Maximum Rise Time: 8.5 ms
Maximum Fall Time: 8.5 ms
Maximum Operating Temperature Range: -30°C to +85°C
Measurement Range: 0 – 1,000 LUX

Variation Specifications

Security: Encrypt-RF® (256-bit key exchange and AES-128 CTR)
Resolution: 0.01 LUX
Accuracy: 0.5% of reading
Weight: 4.8 oz. (136 g)

ALTA Industrial Specifications

Supply Voltage: 2.0 – 3.8 VDC
Battery Type: Replaceable 3.6V, 1800mAH (single AA sized)
Battery Life: At 1 hour heartbeat setting, battery will last up to 10 years.**
Max Operating Temperature: -40° to 85°C (-40° to 185°F)
Optimal Battery Operating Temperature: +10°C to +50°C (+50°F to +122°F)
Solar Power Option: 3.0 VDC Solar Panel 600 mAH Rechargeable Battery (>2000 Charge Cycles – 80% of Initial Capacity)Charging Temperature Range: 0° to 45°C (32° to 113°F) Max Temperature Range: -20° to 60°C (-4° to 140°F)
Enclosure Material: IP65, NEMA 4X, CE rated, sealed, weatherproof enclosure
UL Rating: UL Listed to UL508-4x specifications (File E194432)
Dimension: 3.7 in x 2.32 in x 1.38 in

ALTA 900 MHz Specifications

Operating Frequency: 900 MHz Operating Frequency
Certifications: Complies with Part 15 of the FCC Rules. (FCC ID: ZTL-G2SC1)Complies with Industry Canada standards. (IC: 9794A-G2SC1)
Device Range: Device Range Up to 1,200 ft. non-line-of-sight, wireless device range*
Security: Encrypt-RF® (Diffie-Hellman Key Exchange + AES-128 CBC)
