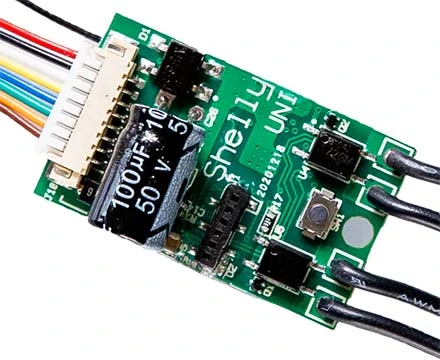

Shelly UNI WiFi Universal IO Module

The Shelly Uni is a tiny Wi-Fi-enabled input-output module for low-voltage applications.  Uni can make any appliance or low-voltage application smart!  Monitor doorbells, control locks, and more.

Uni can support low-voltage digital inputs, analog ADC, or digital sensors like DS18B20 (temperature), and DHT22 (temperature/humidity).

It also has two potential free outputs that can switch low voltage / low current up to 36VAC or 24VDC at up to 100mA.

Shelly doesn’t require a hub, it uses your WiFi and Shelly Cloud – or it may be used with compatible hubs and smart home software.  Check with the hub/software company prior to ordering to verify support.

Additional Device Information


NOTE:  Uni is meant for tech-savvy installers who understand electronic wiring and diagrams.  It can be damaged or you can be hurt if it is installed/connected incorrectly.

Shelly Uni

• Compact WiFi input output smart device
• Supports digital inputs or sensors
• Supports 3 DS18B20 temp or 1 DHT22 humidity sensor
• Powered by 12-36VDC or 12-24VAC
• Two potential free outputs rated up to 24VAC / 36VDC / max 100mA
• Does NOT support high voltage AC connections
• Supports schedules, scenes
• WiFi 802.11 b/g/n 2.4GHZ
• Built-in web server
• Operating temp 0C to 40C
• Dimensions 20mm x 33mm x 13mm

NOTE:  DO NOT CONNECT DIRECTION TO AC POWER.  THIS IS NOT A UL-LISTED DEVICE FOR HIGH POWER.
