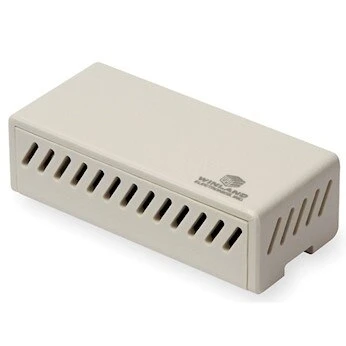

Winland HA-III+ Humidity Sensor

Winland HA-III Electronic Humidity Sensor

The Winland HA-III Plus is a wired humidity sensor can be used with the Winland Enviro Alert monitoring panels including EA200, EA400 and EA800.

Note, it cannot be used with the Winland wireless adapter.

Winland Electronic Humidity Sensor – Specifications

• Power Requirements: 12 VDC @ 5mA
• Sensing Range: 5-95% RH ±5% @ 10-90% RH, 77° F
• Sensing Element: Capacitive / IC
• Response Time: TC < 12 min
• Operating Temp: +32° to +152° F (0° to +50° C)
• Weight: 5 oz (0.14 kg)
• Dimensions: 3 x 2 x 1.75?? (7.6 x 5.08 x 4.45 cm)
• Mounting: Surface mount

Winland Electronic Humidity Sensor – Included

• 1 HA-III Plus Humidity Sensor

Important: Wire not included. 22-2 AWG twisted pair, unshielded or larger recommended.

Winland Electronic Humidity Sensor – Support and Downloads

• Humidity Sensor Specification Sheet
